Grape belt elevator

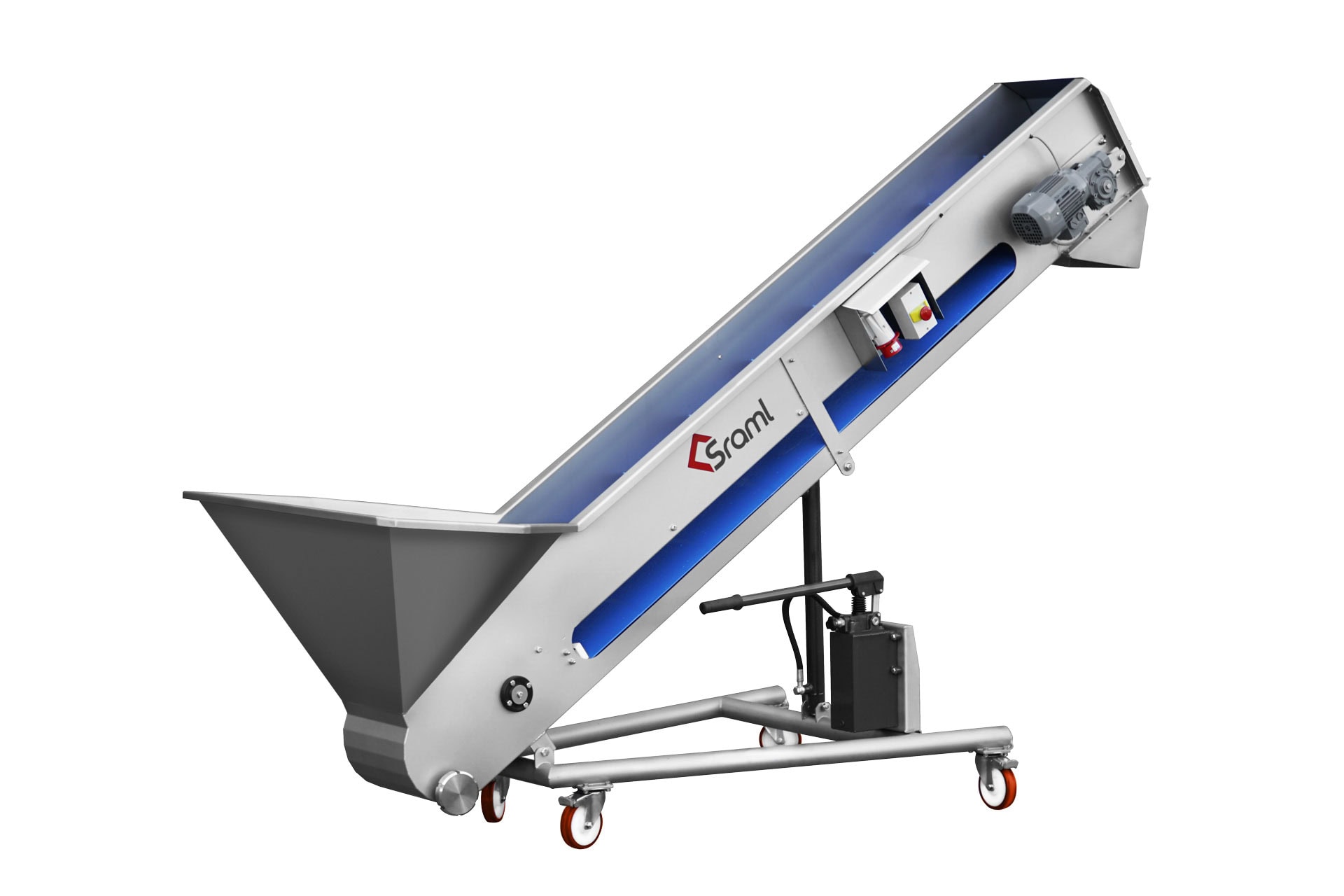

Receiving grapes from boxes, bins or auger-equipped trailers, elevator belts allow quality inspection of grapes and gentle vertical transport of the fruit to a designated processing machine.

Usually placed before the sorting table, destemmer or press, the SRAML GBE range of grape belt elevators efficiently and gently transports the grapes upwards to a designated processing machine, while the drained juice is collected in the tank attached to the conveyor.

SRAML Grape belt elevator features include:

  • Designed to convey fresh whole or destemmed grapes and fermented marc
  • Available in different sizes and adjustable inclination
  • Open structure and tubular heavy-duty frame for ease of cleaning and maintenance
  • Mounted on swivel casters to serve several purposes
Send inquiry

Product specifications

  • Designed to convey fresh whole or destemmed grapes and fermented marc
  • AISI 304 stainless steel construction
  • Quick belt release as standard to allow simple and efficient cleaning
  • The belt is made of non-toxic material with 50 mm high ribs positioned approx. every 270 mm.
  • Equipped with a juice collection tank (DIN DN50 connection) and supplied with a blind cap.
  • Mounted on a trolley with two fixed wheels and two dual-brake swivel casters. The output height is fixed, but it can be adjusted to 3 different levels. The basic output height is set upon request.
  • The max. working slope is 45°.
  • Supplied with a hopper of 520 × 1000 mm.
  • CE-certified electrical box with the START/STOP button and emergency stop push-button

GBE300 available with

  •  Larger receiving hopper of 1200 × 1080 mm

GBE500 available with

  •  Larger receiving hopper of 1500 × 1080 mm

GBE300 and GBE500 available with

  • Trolley on two fixed wheels and two swivel casters, equipped with a hydraulic cylinder to adjust the output height by a hydraulic manual pump
  • Rotating unloading tray
  • Electric cabinet with the start/stop function and mechanical speed variator
  • Electric cabinet with the start/stop function and inverter
  • Conveyor without a trolley support frame; delivered with a fixed output height
  • Conveyor without the hopper
  • Without the CE-certified ON–OFF–EMERGENCY electrical box
  • Machine with different electrical supply
Name
GBE 300 × 2500
GBE 300 × 3000
GBE 300 × 3500
GBE 300 × 4000
GBE 300 × 4500
GBE 300 × 5000
GBE 300 × 5500
GBE 300 × 6000
GBE 300 × 6500
GBE 300 × 7000
GBE 300 × 7500
GBE 500 × 2500
GBE 500 × 3000
GBE 500 x 3500
GBE 500 × 4000
GBE 500 × 4500
GBE 500 × 5000
GBE 500 × 5500
GBE 500 × 6000
GBE 500 × 6500
GBE 500 × 7000
GBE 500 × 7500
Conveyor length L (mm)Conveyor width W (mm)Discharge height H (mm)Hopper length L1 (mm)Hopper width W1 (mm)Hopper height H1 (mm)Width W2 (mm)Max. height H2 (mm)Total length L2 (mm)Weight (kg)Electric power source (kW)Supply voltageMech. protectionCapacity (kg/h)PDF
2.5003001.460–2.1107201.000885–6201.10025252.7802351,13/N/PE ~ 400/230 50 HzIP5524.000 PDF
3.0003001.770–2.5207201.000885–6201.2202.9303.1902501,13/N/PE ~ 400/230 50 HzIP5524.000 PDF
3.5003002.080–2.9307201.000885–6201.3403.3353.6002651,13/N/PE ~ 400/230 50 HzIP5524.000 PDF
4.0003002.390–3.3407201.000885–6201.4603.7404.0102801,53/N/PE ~ 400/230 50 HzIP5524.000 PDF
4.5003002.700–3.8507201.000885–62015804.1454.4202951,53/N/PE ~ 400/230 50 HzIP5524.000 PDF
5.0003003.010–4.2607201.000885–6201.7004.5504.8303301,53/N/PE ~ 400/230 50 HzIP5524.000 PDF
5.5003003.320–4.6707201.000885–6201.8204.9555.2403552,23/N/PE ~ 400/230 50 HzIP5524.000 PDF
6.0003003.630–5.0807201.000885–6201.9405.3605.6503752,23/N/PE ~ 400/230 50 HzIP5524.000 PDF
6.5003003.940–5.4907201.000885–6202.0605.7656.0603952,23/N/PE ~ 400/230 50 HzIP5524.000 PDF
7.0003004.250–5.9007201.000885–6202.1806.1706.4704152,23/N/PE ~ 400/230 50 HzIP5524.000 PDF
7.5003004.560–6.3107201.000885–6202.3006.5756.8804352,23/N/PE ~ 400/230 50 HzIP5524.000 PDF
2.5005001.460–2.1107201.200885–6201.2002.5252.7802551,13/N/PE ~ 400/230 50 HzIP5540.000 PDF
3.0005001.770–2.5207201.200885–6201.3202.9303.1902801,13/N/PE ~ 400/230 50 HzIP5540.000 PDF
3.5005002.080–2.9307201.200885–6201.4403.3353.6003051,13/N/PE ~ 400/230 50 HzIP5540.000 PDF
4.0005002.390–3.3407201.200885–6201.5603.7404.0103301,53/N/PE ~ 400/230 50 HzIP5540.000 PDF
4.5005002.700–3.8507201.200885–6201.6804.1454.4203551,53/N/PE ~ 400/230 50 HzIP5540.000 PDF
5.0005003.010–4.2607201.200885–6201.8004.5504.8303801,53/N/PE ~ 400/230 50 HzIP5540.000 PDF
5.5005003.320–4.6707201.200885–6201.9204.9555.2404052,23/N/PE ~ 400/230 50 HzIP5540.000 PDF
6.0005003.630–5.0807201.200885–6202.0405.3605.6504302,23/N/PE ~ 400/230 50 HzIP5540.000 PDF
6.5005003.940–5.4907201.200885–6202.1605.7656.0604552,23/N/PE ~ 400/230 50 HzIP5540.000 PDF
7.0005004.250–5.9007201.200885–6202.2806.1706.4704802,23/N/PE ~ 400/230 50 HzIP5540.000 PDF
7.5005004.560–6.3107201.200885–6202.4006.5756.8805102,23/N/PE ~ 400/230 50 HzIP5540.000 PDF
