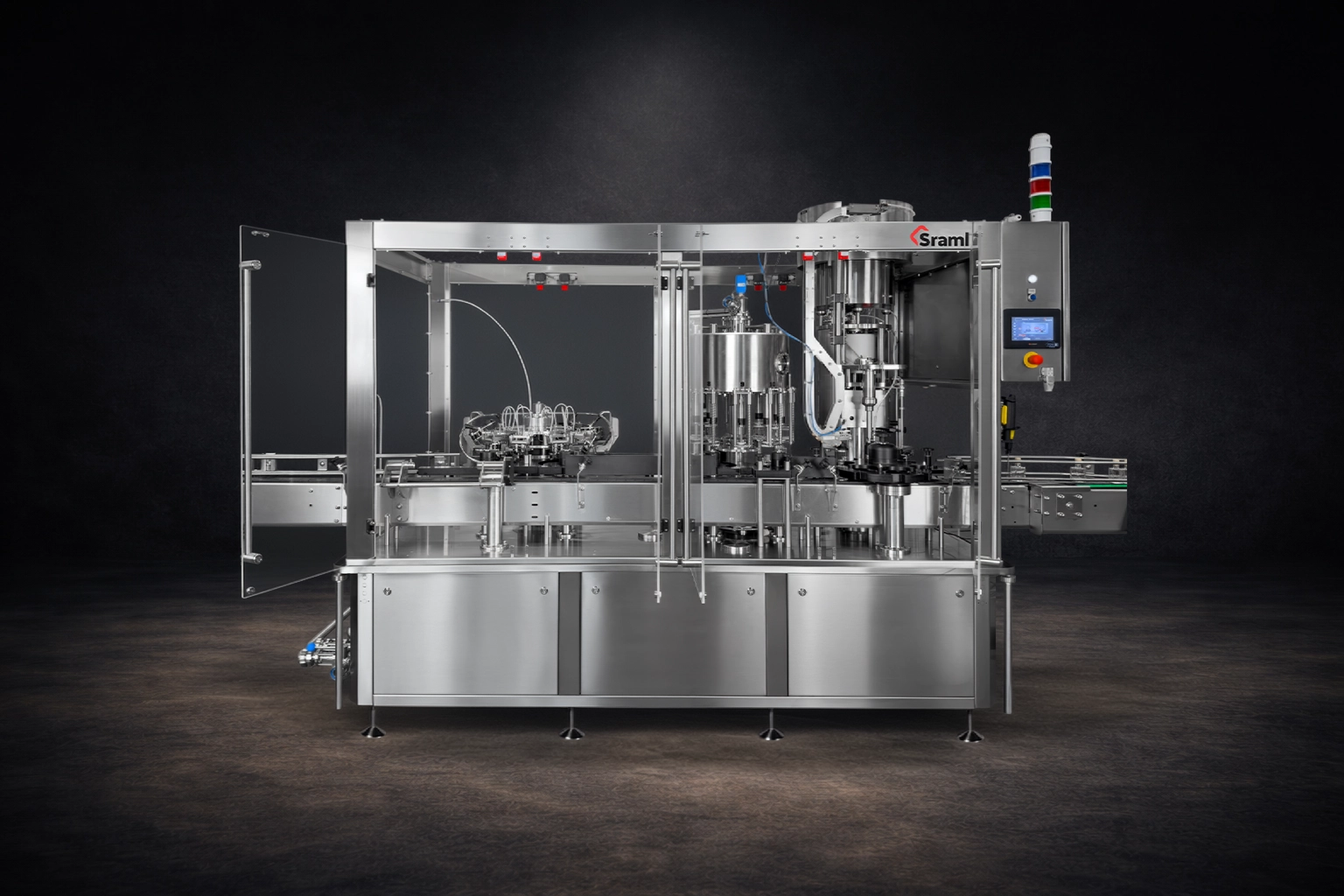

Spirits Monoblock
The Spirits Monoblock is a compact and synchronized solution that combines rinsing, filling, and closing in one system for reliable and efficient bottling of spirits and distilled beverages. Designed for accurate filling and clean operation, it offers flexible configuration options and can also be expanded into a complete bottling line.
Main features
Rinsing
The rinsing section ensures reliable bottle preparation before filling, with precise bottle handling and controlled use of the rinsing medium. It is designed for repeatable operation, flexible treatment options, and quick adaptation to different bottle formats.
Filling – low vacuum system
The filling section is designed for precise and controlled filling of spirits, where accuracy and clean operation are essential. Its low vacuum principle ensures smooth product flow, stable filling levels, and reliable performance in daily production.
Closing
The closing section provides synchronized and reliable bottle sealing with flexible options for different closure types. It can be configured for one or multiple technologies depending on packaging requirements and production needs.
Key features
-
01
Rotary rinser for reliable bottle preparation
-
02
Bottles gripped by the neck and inverted
-
03
Cam-controlled bottle handling
-
04
“No bottle – no spray” system
-
05
Single or double treatment available
-
06
Product rinsing or sterile air blowing
-
07
Electric height adjustment for quick changeovers
-
08
Additional rinsing applications available
-
01
Low vacuum filling principle
-
02
Smooth flow along the bottle wall
-
03
Consistent filling levels without extra leveling
-
04
Bottom product feed for stable flow
-
05
Bottom product feed for reduced air pockets
-
06
Capacitive level sensor for product control
-
07
Temperature monitoring in the filler tank
-
08
Pneumatic bottle lifting for secure sealing
-
09
Gravity filling without vacuum available as an option
-
01
Integrated CIP system
-
02
Closed cleaning circuit through filling valves
-
03
Dummy bottle cleaning system
-
04
Integrated spray ball for tank cleaning
-
05
Efficient cleaning with reduced water consumption
-
06
Cleans product-contact parts without disassembly
-
07
Reduced downtime
-
08
Simplified operation and maintenance
-
01
Synchronized bottle closing process
-
02
ROPP capping available
-
03
T-cork application available
-
04
“No bottle – no cap” function
-
05
Cam-operated closing movements
-
06
Single or combined closing configuration
-
07
Reversible turret or separate turret design
-
08
Other closure types available on request
-
01
Stainless-steel construction
-
02
Precisely machined base for stable operation
-
03
Hygienic and enclosed machine design
-
04
Protected components for improved durability
-
05
Easy access for servicing and maintenance
-
06
PLC control with touchscreen interface
-
07
Automatic, manual, and cleaning modes
-
08
Optional remote access for diagnostics and updates
