Bag in Box filler

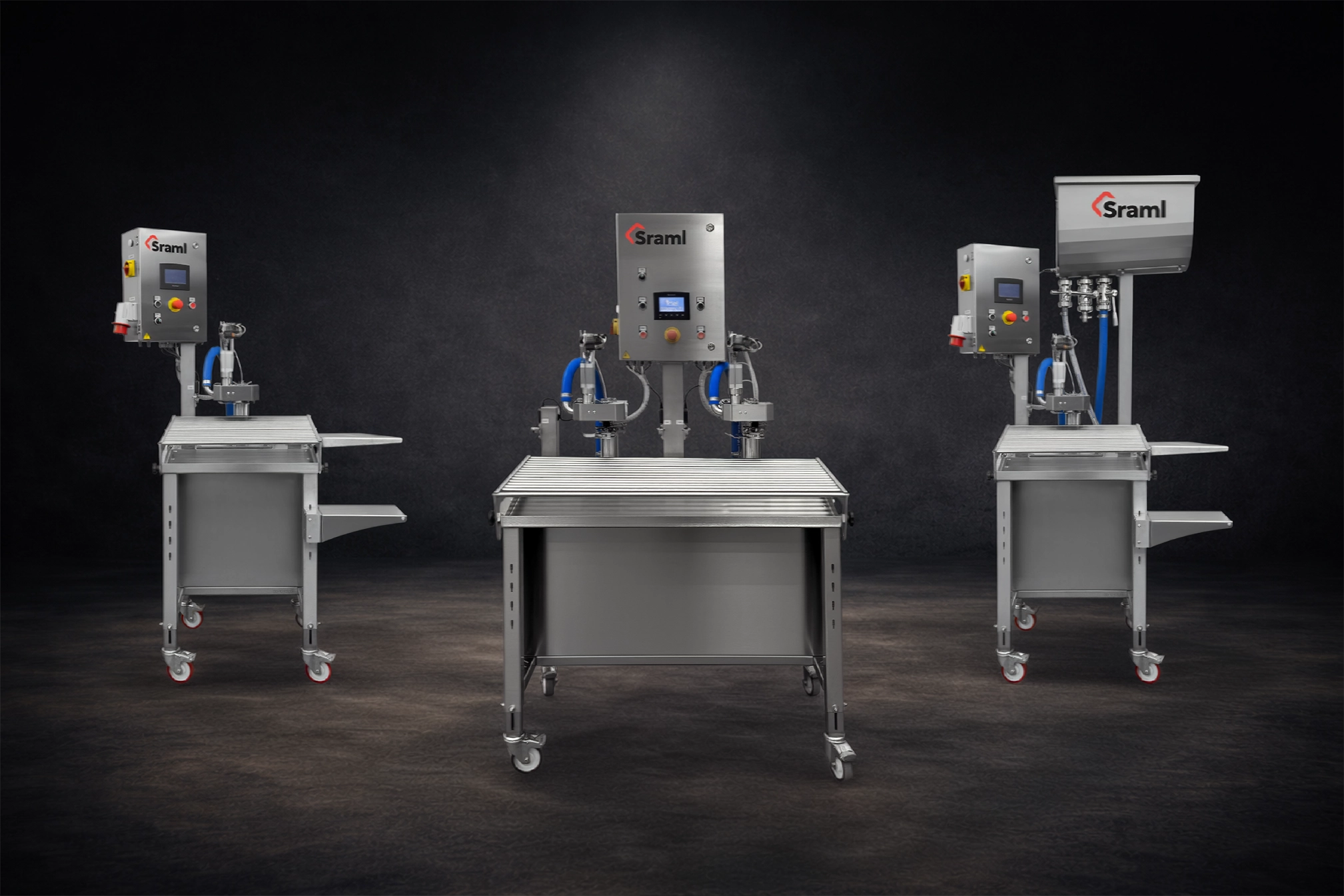

From juice and purée to wine and syrup, SRAML Bag-in-Box fillers are built for accurate, hygienic, and easy-to-manage filling. With automatic or semi-automatic operation, application-specific configuration, and simple cleaning, they are a dependable solution for producers who want efficient packaging without unnecessary complexity.

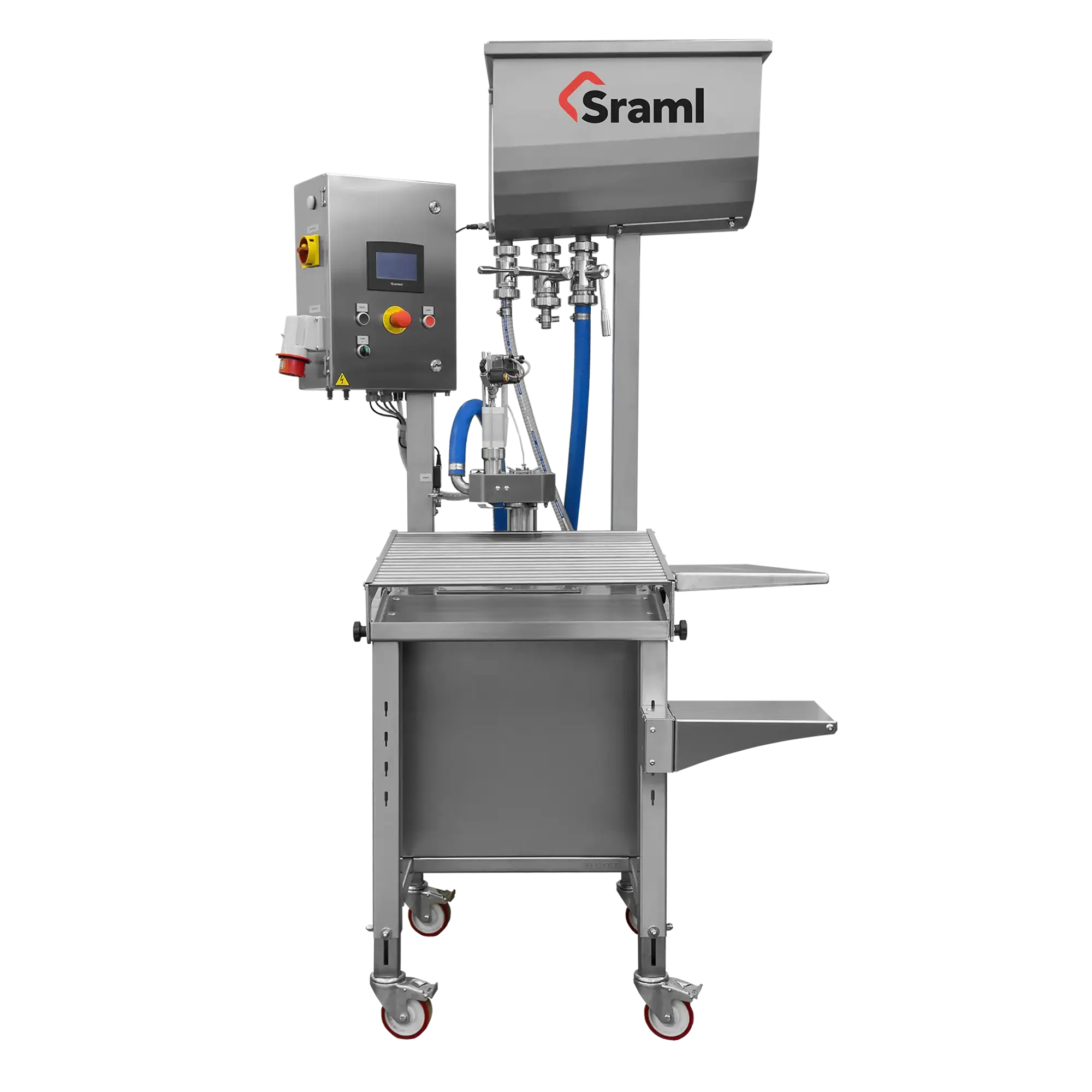

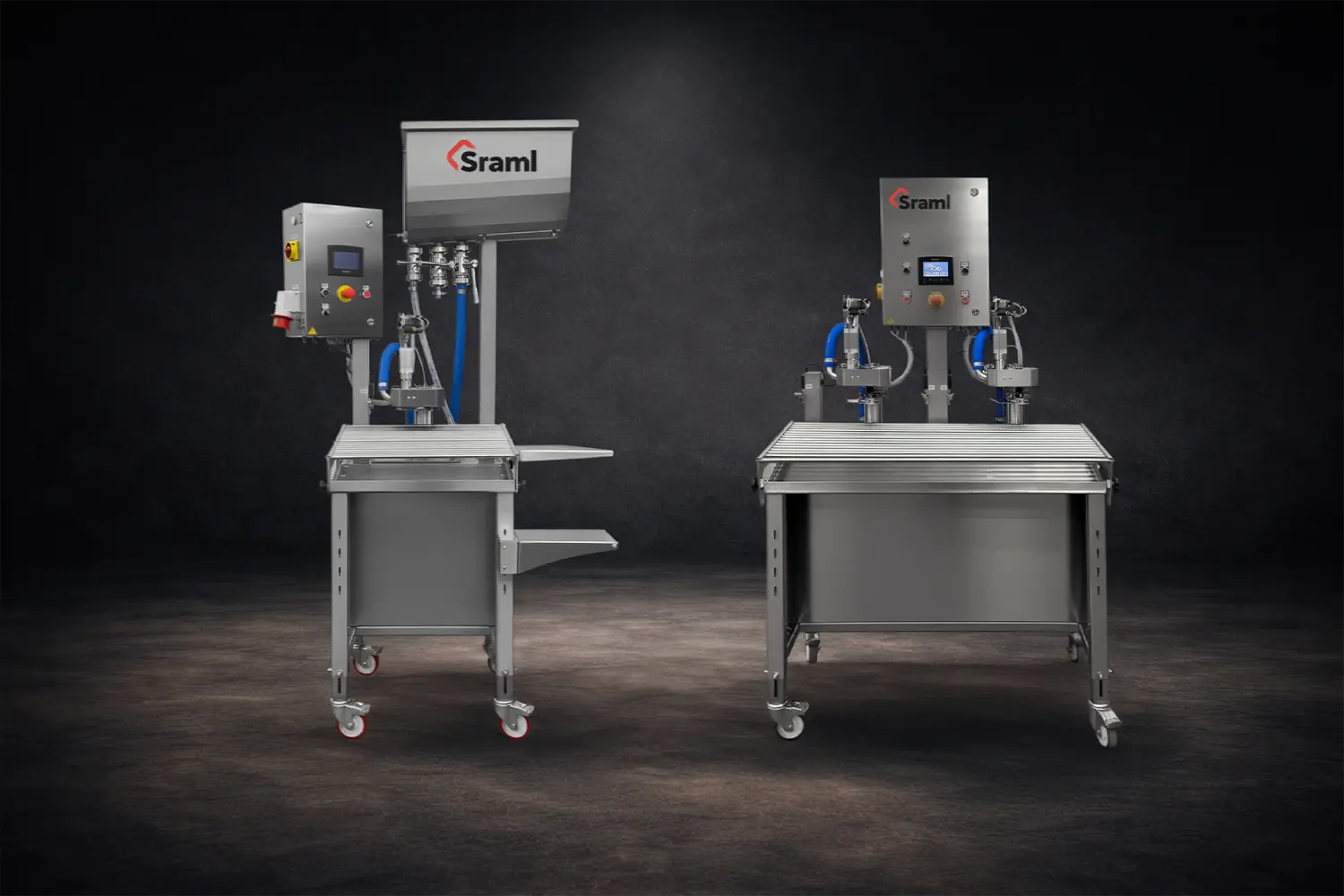

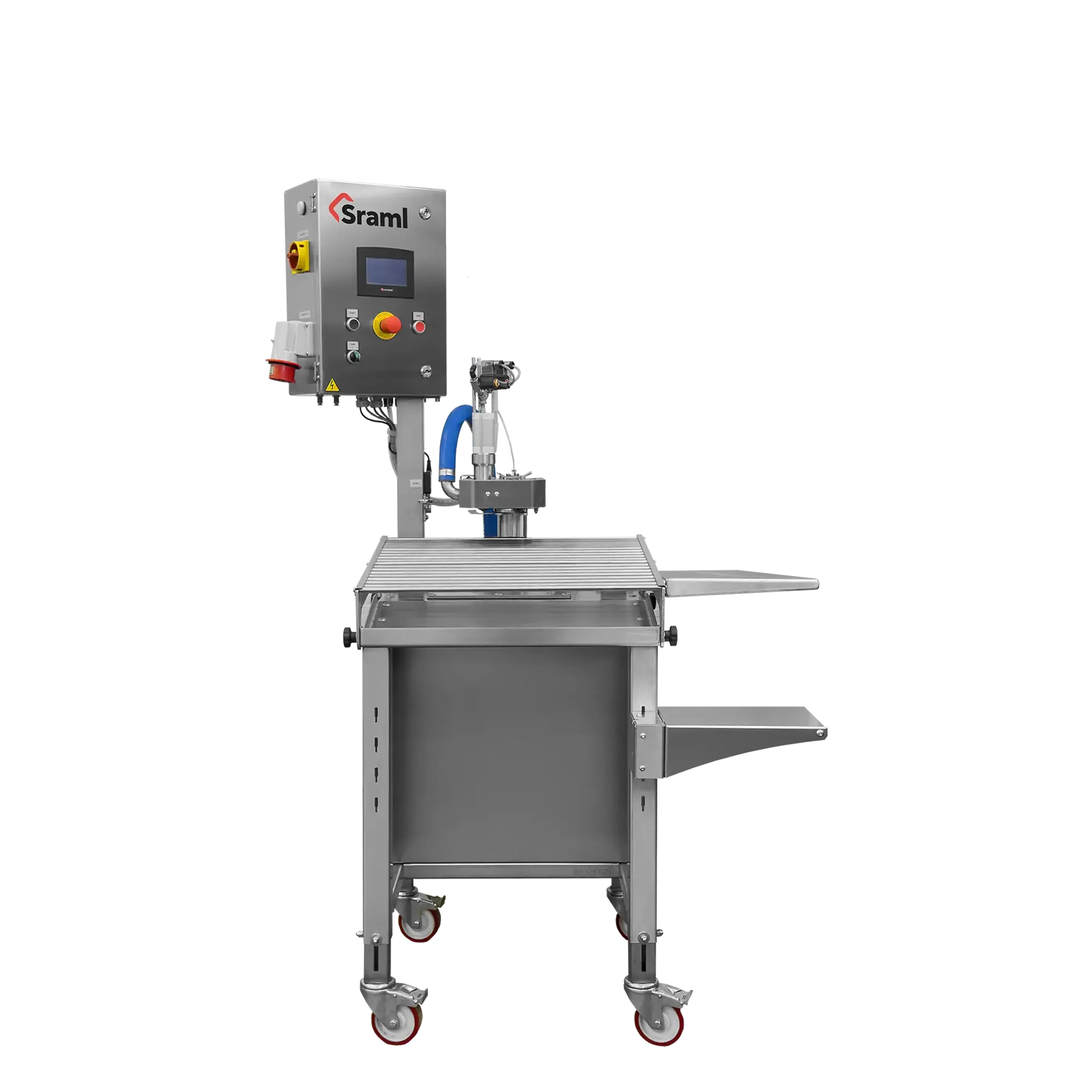

Automatic Bag-in-Box filler
Available in single-head or double-head execution, the ABB is designed for producers who need higher efficiency, repeatable filling accuracy, and a simple operator workflow. Once the bag is placed in position and the cycle is started, the machine automatically performs the full sequence: bag opening, pre-vacuum, filling, optional nitrogen dosing, and closing. All key parameters are adjustable, giving the operator full control over the process while keeping daily work fast and consistent.

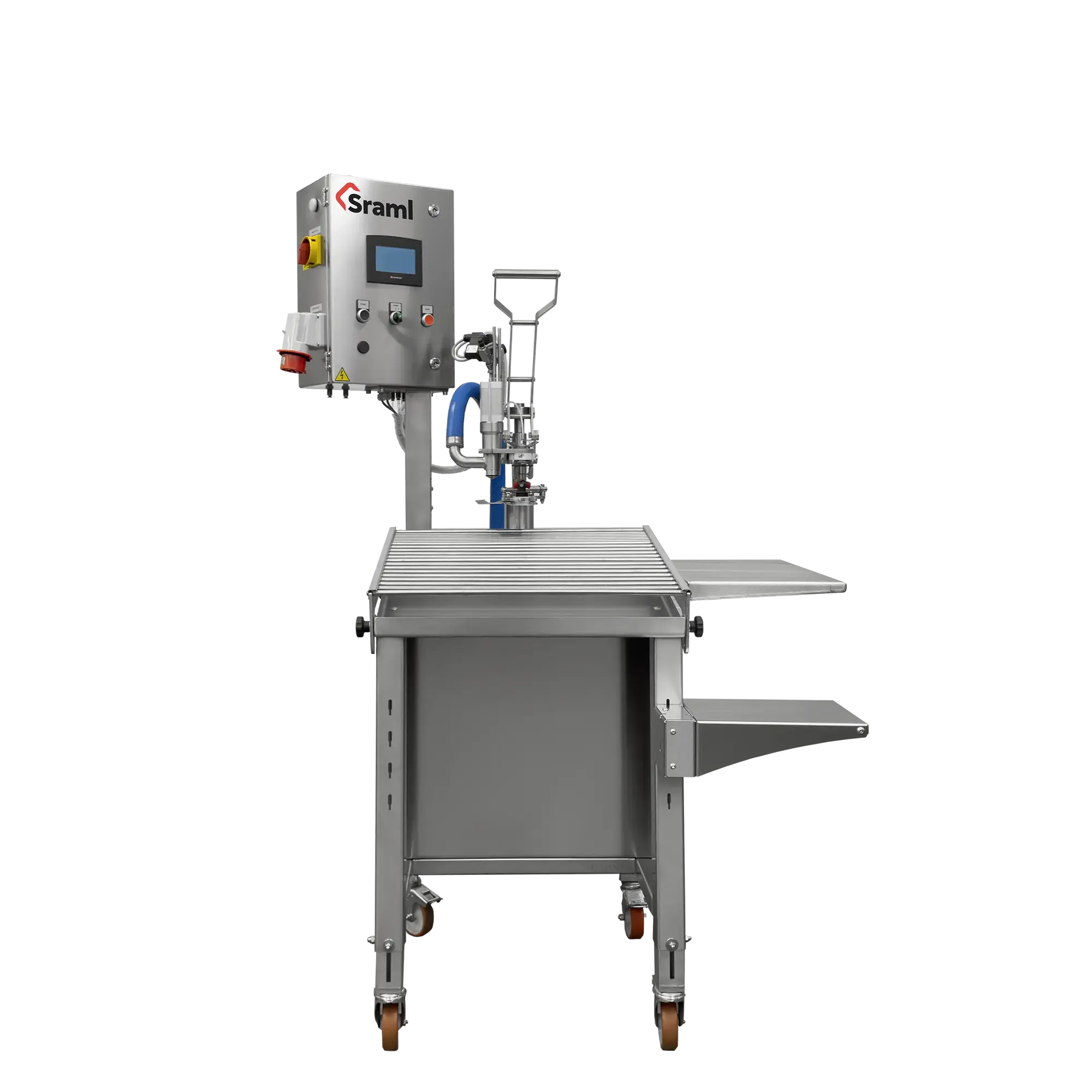

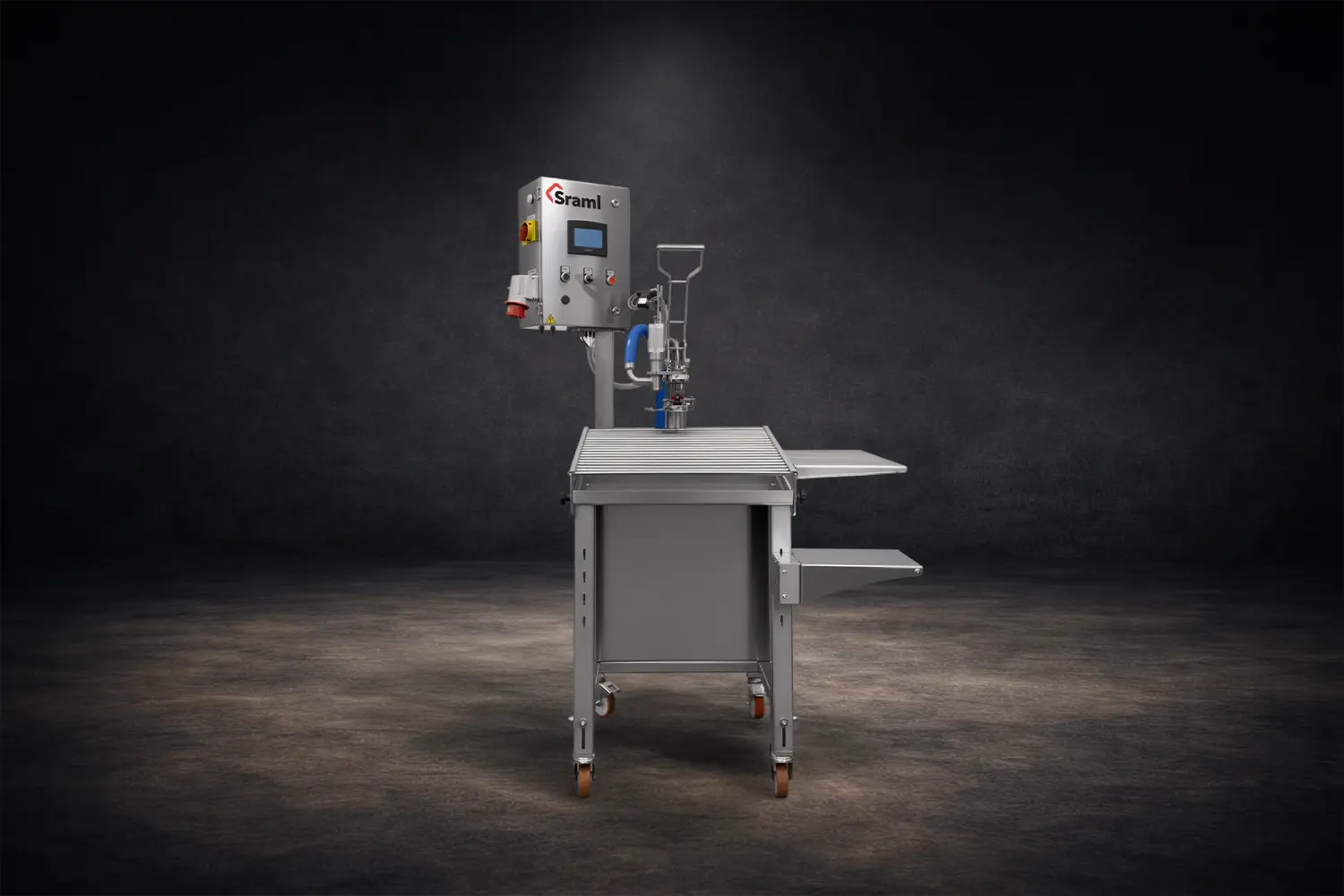

Semi-automatic Bag-in-Boxfiller
The RBB is a practical solution for producers who want reliable filling with straightforward operator control. The operator places the bag in position and opens it manually with the handle, after which the machine automatically starts the filling process, including pre-vacuum and product filling, with the option of nitrogen injection. The bag is then closed manually, combining process simplicity with dependable filling performance.
Discover features
-
01
Compact stainless-steel construction on a stable mobile frame.
-
02
Pneumatic bag locking and cap opening for a smooth filling cycle.
-
03
Vacuum system with adjustable settings to remove residual air and reduce foaming.
-
04
Optional inert gas dosing after filling to help reduce oxidation in sensitive products.
-
05
Flowmeter-based volume measurement matched to the product application.
-
06
Integrated CIP dummy bag nozzle system for efficient cleaning.
-
01
Parts for a second bag format.
-
02
Metal funnel for pouch-up bags.
-
03
200 L drum filling kit.
-
04
Ultra-clean cover with laminar flow system and HEPA filter.
-
05
Cap sterilization system for single-head models.
-
01
Paddle wheel flowmeters are used for low-viscosity products such as juice, wine, and water.
-
02
Inductive flowmeters are used for electrically conductive products from low to higher viscosity, such as purée and syrup.
-
03
Single-head RBB and ABB models reach up to 260 bags per hour with 5 L bags.
-
04

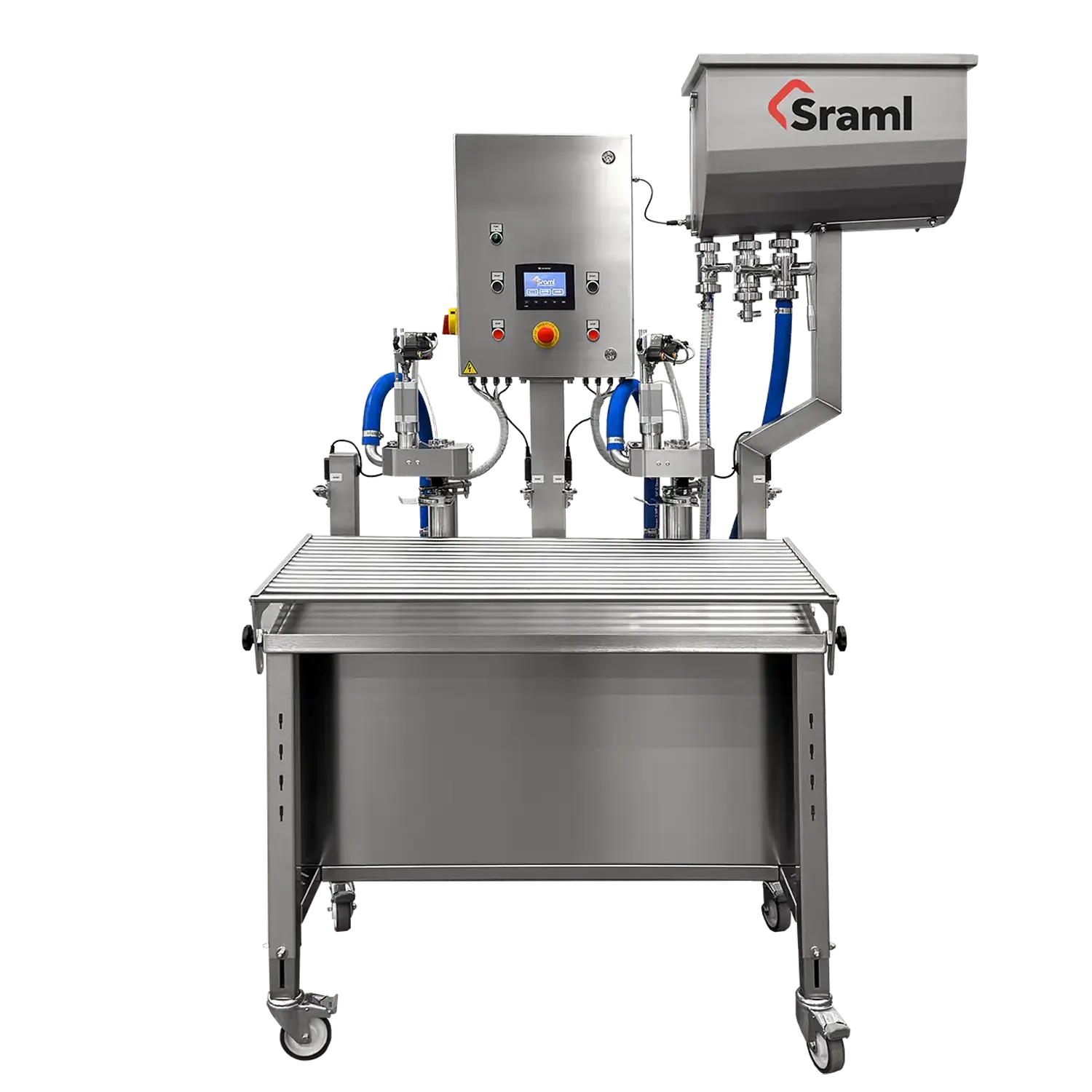

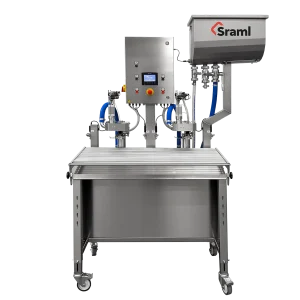

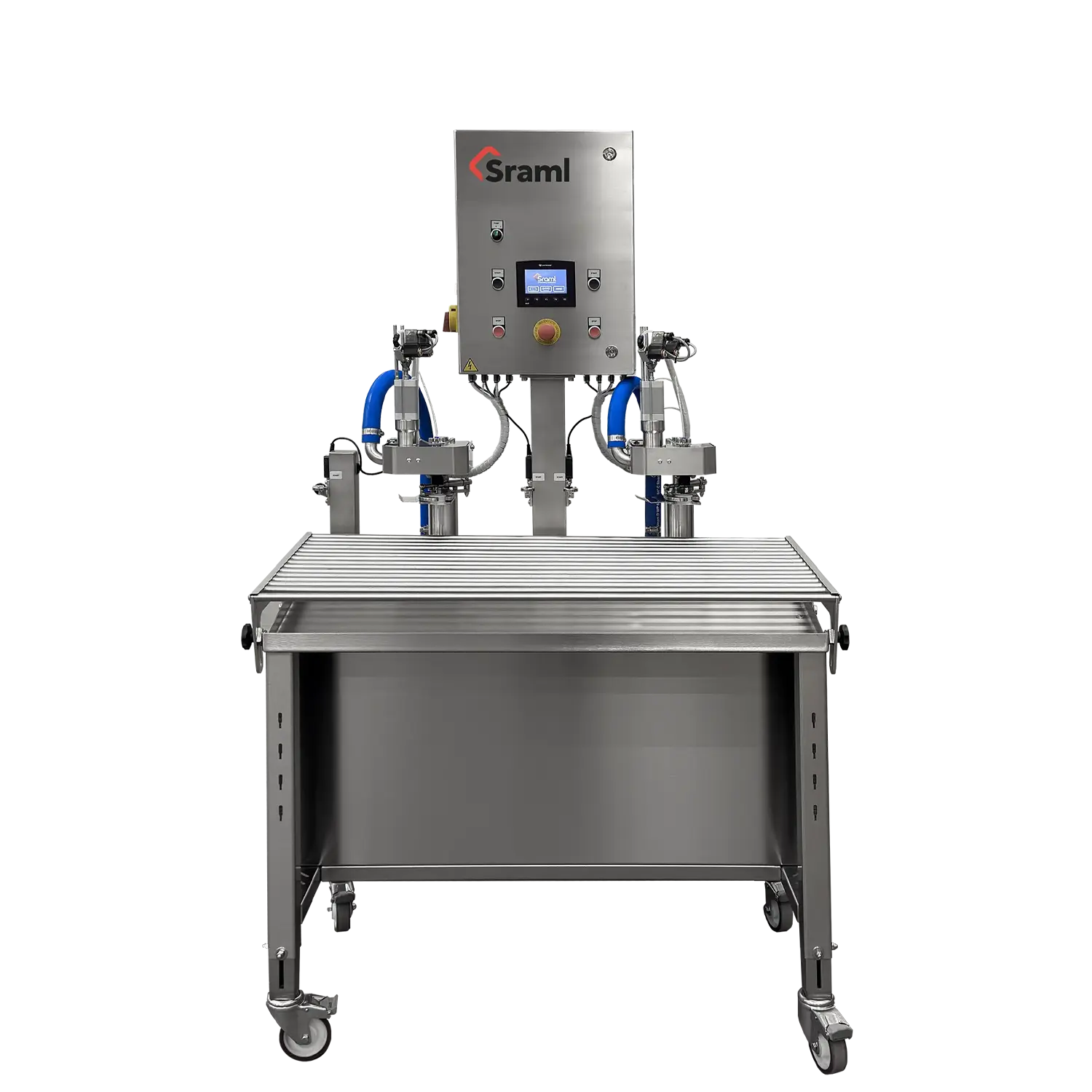

The double-head 2ABB reaches up to 500 bags per hour with 5 L bags.
Configure your Bag in Box
Every production is different, which is why the right machine should match your process, capacity, and product requirements. Use our configurator to explore the best-fit solution for your operation and define the key features you need. It’s a simple way to start shaping a machine around your production goals.
